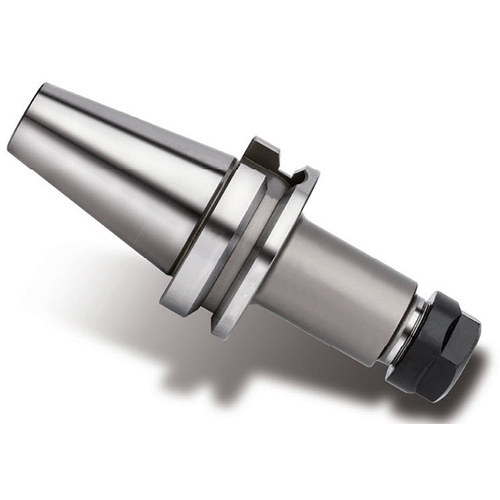

CAT40 AD/B-ER32-2.70 ER
Collet Chuck ; CAT40 Shank Size ; ER32 Connection Size ; 1.969″ Body Dia. ; 0.078″ Min. Capacity ; 0.787″ Max. Capacity
| Shank Size (SS) | CAT40 | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.078″ |
| Body Diameter (BD) | 1.969″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 2.7″ | Type | CAT40AD/B-ER32-2.70 |
| Tool Type | ASME B5.50-2009-CAT | Connection Code Machine Side (CCMS) | CAT |
| Style | Stub |
Product Features
| Remarks | Supplied without the wrench. | Country of Origin | S.Korea |
Shipping Info
Package Length
5.55
Package Width
2.95
Package Height
2.95
Package Weight
0
