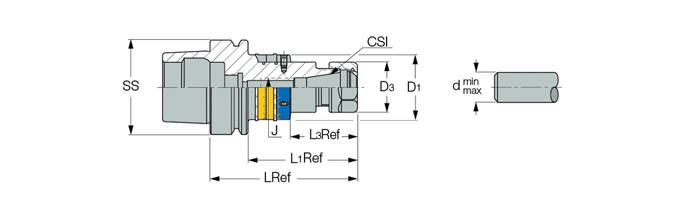

HSK E 63 ER25X100 BIN
| Shank Size (SS) | 63″ | Tool Type | HSK |
| Connection Size (CSI) | ER25 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 1.11″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.03937″ |
| Body Diameter_3 (BD_3) | ER25 | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.512″ |
| Protruding Length (LPR) | 3.937″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 2.91338″ |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form E balanceable tapered shanks. | Country of Origin | IL |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Can be balanced by the balancing rings up to G2.5 at 30,000RPM. For adaptation click on "More Info" |
Shipping Info
Package Weight
2.6610
