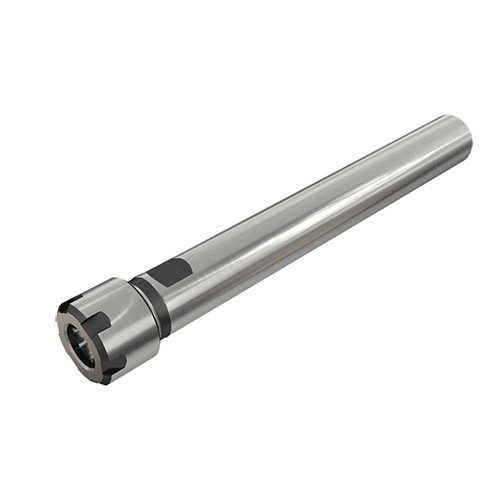

ST5/8X4.000 ER11 M
Collet Chuck ; 5/8 Shank Size ; ER11 Connection Size ; 0.63″ Body Dia. ; 5/8″ Shank Dia. ; 0.022″ Min. Capacity ; 0.278″ Max. Capacity

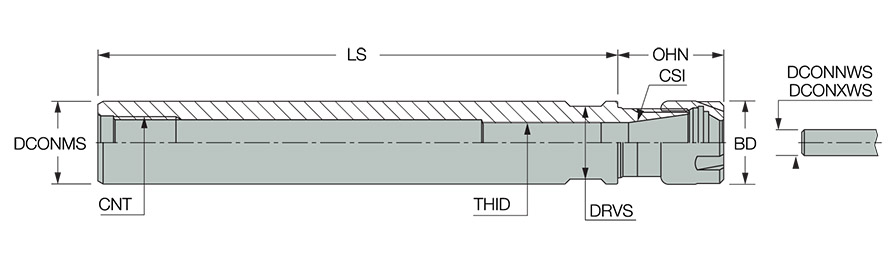

| Shank Size (SS) | 5/8 | Style | ER11 |
| Connection Size (CSI) | ER11 | Coolant Supply Property (CSP) | Through Hole |
| Body Diameter (BD) | 0.63″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.022″ |
| Protruding Length (LPR) | 0.734″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.278″ |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Measurement Type | Inch |
| Shank Length (LS) | 4″ | Drive Size (DRVS) | 0.512″ |
| Tool Type | Cylindrical Shanks | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER mini collet chucks with cylindrical shanks. | Country of Origin | Israel |
Shipping Info
Package Length
5.03940
Package Width
1.57480
Package Height
1.57480
Package Weight
0.473
