BT40ER20X70B
Collet Chuck ; 40 Shank Size ; ER20 Connection Size ; 34 mm Body Dia. ; 43 mm Body Length ; 1 mm Min. Capacity ; 13 mm Max. Capacity

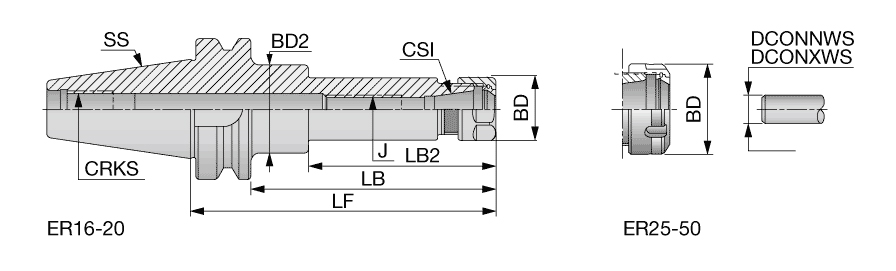

| Shank Size (SS) | 40 | Application | | Tapered shape interface | |
| Connection Size (CSI) | ER20 | Tool Type | BT |
| Body Diameter (BD) | 34 mm | Connection Diameter Minimum Workpiece Side (DCONNWS) | 1 mm |
| Protruding Length (LPR) | 70 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 13 mm |
| Body Length Maximum (LBX) | 43 mm | Measurement Type | Metric |
| Body Length (LB) | 43 mm | Body Material | Steel |
| Functional Length (LF) | 70 mm |
Product Features
| Family Description | ER collet chucks with BT shank | Country of Origin | Israel |
| Remarks | Add B for coolant through the flange. Wrench is not included. |
Shipping Info
Package Weight
0.009
