HSK A 63 ER32X160 BIN
Collet Chuck ; 63 Shank Size ; ER32 Connection Size ; 1.969″ Body Dia. ; 5.276″ Body Length ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

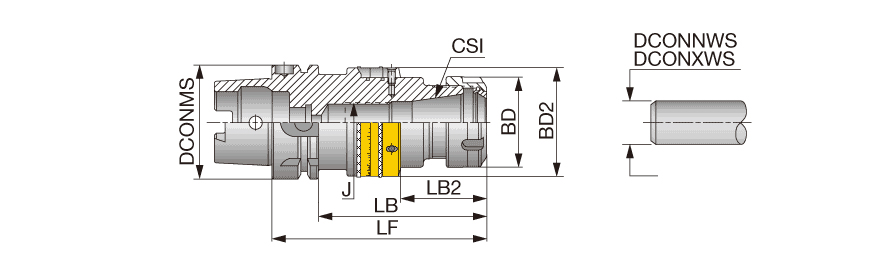

| Shank Size (SS) | 63 | Functional Length (LF) | 6.299″ |
| Connection Size (CSI) | ER32 | Application | | HSK Interface | TungBalance Balancable Chuck | |
| Body Diameter (BD) | 1.969″ | Tool Type | HSK |
| Protruding Length (LPR) | 8″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Length (LB) | 5.276″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Body Length_2 (LB_2) | 3.346″ | Measurement Type | Inch |
Product Features
| Family Description | TungBalance adjustable dynamic balance collet chuck holder with HSK-A shank | Country of Origin | Israel |
| Remarks | Balanced to G2.5 20,000 min 1 |
Shipping Info
Package Weight
0.009
