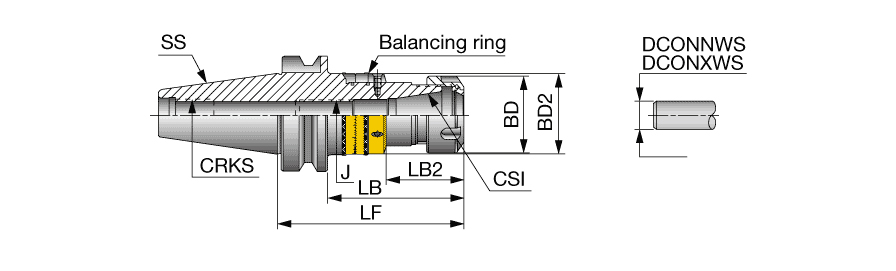

BT40 ER25X100 BIN
Collet Chuck ; 40 Shank Size ; ER25 Connection Size ; 1.654″ Body Dia. ; 2.874″ Body Length ; 0.039″ Min. Capacity ; 0.63″ Max. Capacity
| Shank Size (SS) | 40 | Functional Length (LF) | 3.937″ |
| Connection Size (CSI) | ER25 | Application | | BT Interface | TungBalance Balancable Chuck | |
| Body Diameter (BD) | 1.654″ | Tool Type | BT |
| Protruding Length (LPR) | 8″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.039″ |
| Body Length (LB) | 2.874″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.63″ |
| Body Length_2 (LB_2) | 1.693″ | Measurement Type | Inch |
Product Features
| Family Description | TungBalance adjustable dynamic balance collet chuck holder with BT shank | Country of Origin | Israel |
| Remarks | Balanced to G2.5 20,000 min 1 Wrench is not included. |
Shipping Info
Package Weight
0.009
