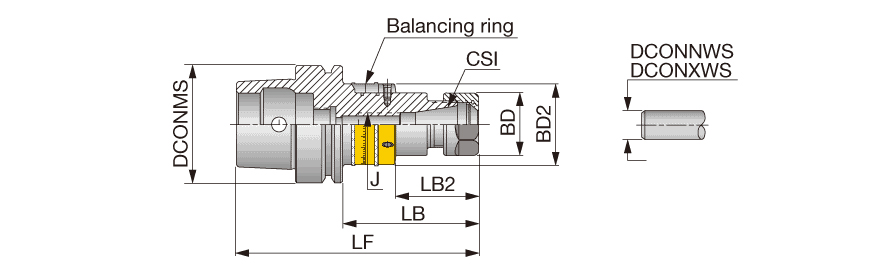

HSK E 63 ER16X100 BIN
Collet Chuck ; 63 Shank Size ; ER16 Connection Size ; 1.102″ Body Dia. ; 2.913″ Body Length ; 0.02″ Min. Capacity ; 0.394″ Max. Capacity
| Shank Size (SS) | 63 | Functional Length (LF) | 3.937″ |
| Connection Size (CSI) | ER16 | Application | | HSK Interface | TungBalance Balancable Chuck | |
| Body Diameter (BD) | 1.102″ | Tool Type | HSK |
| Body Diameter_3 (BD_3) | 1.732″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.02″ |
| Protruding Length (LPR) | 8″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.394″ |
| Body Length (LB) | 2.913″ | Measurement Type | Inch |
| Body Length_2 (LB_2) | 1.772″ |
Product Features
| Family Description | TungBalance adjustable dynamic balance collet chuck holder with HSK-E shank | Country of Origin | Israel |
| Remarks | Balanced to G2.5 20,000 min 1 |
Shipping Info
Package Weight
0.009
