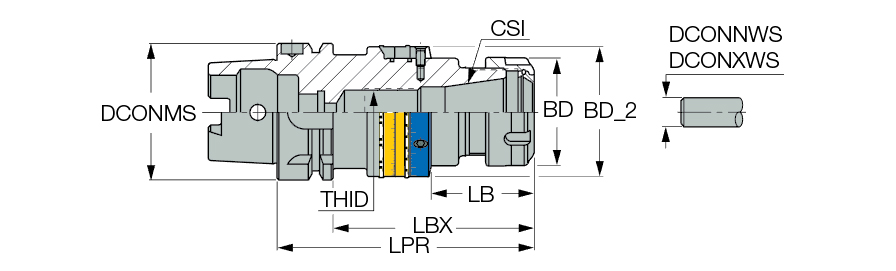

HSK A63 ER25X100 BIN

Item # EH4509069

Brand: Iscar

MFG #: 4509069

Legacy Part #: EH4509069

Connection Size (CSI)

ER25

Application

| Collet Chucks | HSK |

Body Diameter (BD)

1.654″

Tool Type

HSK

Protruding Length (LPR)

3.937″

Coolant Supply Property (CSP)

Through Hole

Body Length Maximum (LBX)

2.91338″

Connection Diameter Minimum Workpiece Side (DCONNWS)

0.039″

Connection Diameter Machine Side (DCONMS)

2.48″

Measurement Type

Inch

Product Features

Family Description

Balanceable DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.

Country of Origin

Israel

Remarks

A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on "More Info".

Package Weight

2.580
