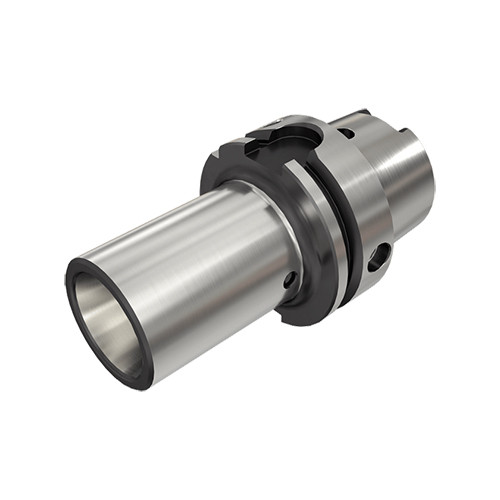

HSK A63 ER32 CLICK-IN
Collet Chuck ; 63 Shank Size ; 32 SRF Connection Size ; 2.48″ Shank Dia.

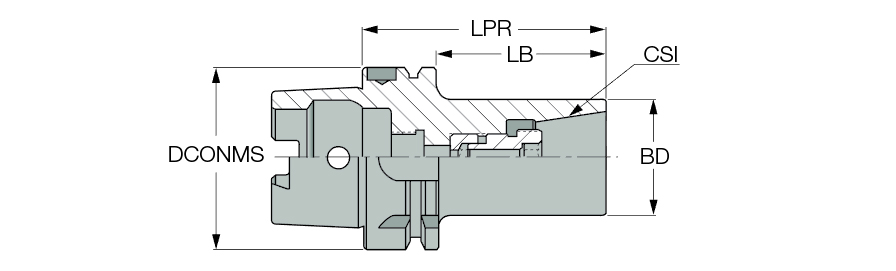

| Shank Size (SS) | 63 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | 32 SRF | Measurement Type | Inch |
| Protruding Length (LPR) | 3.346″ | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 2.48″ | Connection Code Machine Side (CCMS) | HSK |
| Tool Type | HSK |
Product Features
| Family Description | CLICKIN quick change connection adapters with HSK DIN 69893/A tapered shanks. | Country of Origin | Israel |

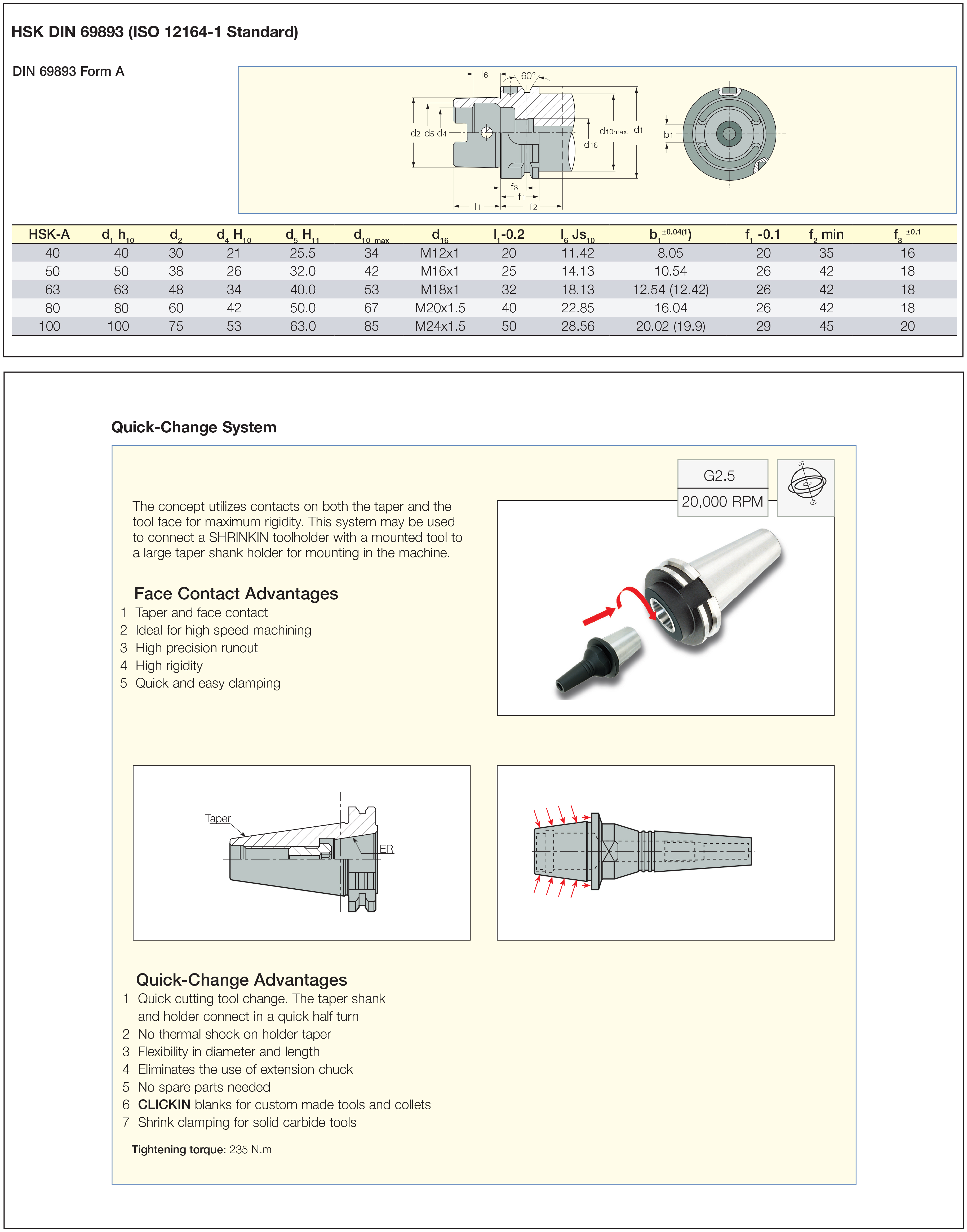

| Remarks | Tightening torque: 174 Lbfxft A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
2.575
