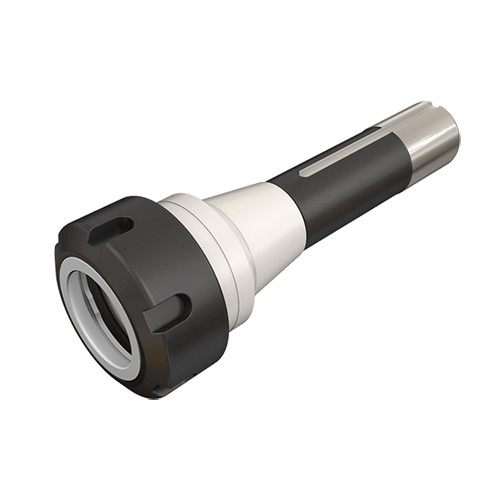

R-8 ER32X40
Collet Chuck ; R-8 Shank Size ; ER32 Connection Size ; 1.968″ Body Dia. ; 0.079″ Min. Capacity ; 0.787″ Max. Capacity

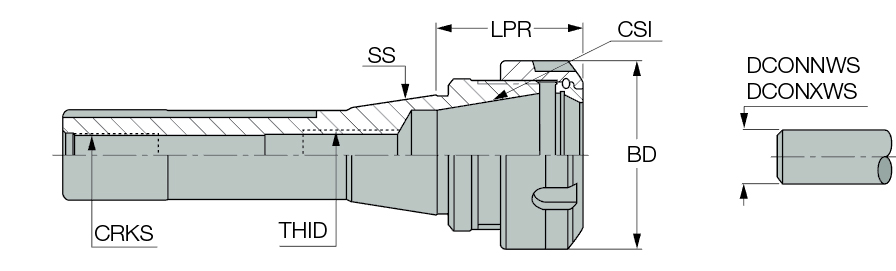

| Shank Size (SS) | R-8 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.079″ |
| Body Diameter (BD) | 1.968″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.787″ |
| Protruding Length (LPR) | 1.575″ | Measurement Type | Inch |
| Tool Type | R-8 | Body Material | Steel |
| Style | ER32 |
Product Features
| Family Description | DIN 6499 ER collet chucks with Bridgeport shanks. | Country of Origin | Italy |
Shipping Info
Package Length
5.70000
Package Width
2.35000
Package Height
2.35000
Package Weight
1.322
