GYRO ST 1-1/4X ER32

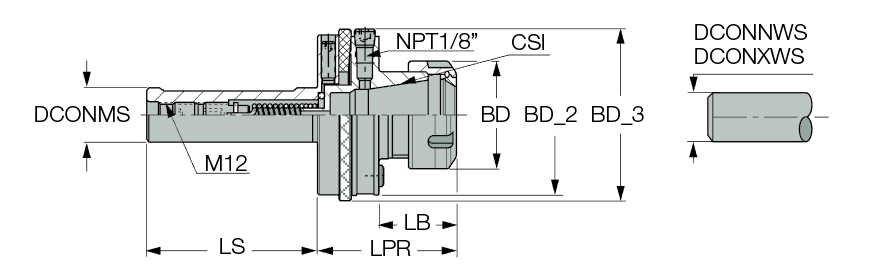

| Connection Size (CSI) | ER32 | Application | Center Alignment Devices |
| Body Diameter (BD) | 1.968″ | Tool Type | Cylindrical Shanks |
| Protruding Length (LPR) | 2.624″ | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.08″ |
| Body Length Maximum (LBX) | 1.437″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
Product Features
| Family Description | GYRO ER collet center alignment device with a cylindrical shank. | Country of Origin | Israel |
| Remarks | Radial adjustment .08″ Angular adjustment 1° First time users should buy a GYRO kit which includes a test bar and a bushing for performing the alignment procedure For adaptation options, click on "More Info" |
Shipping Info
Package Weight
3.396
