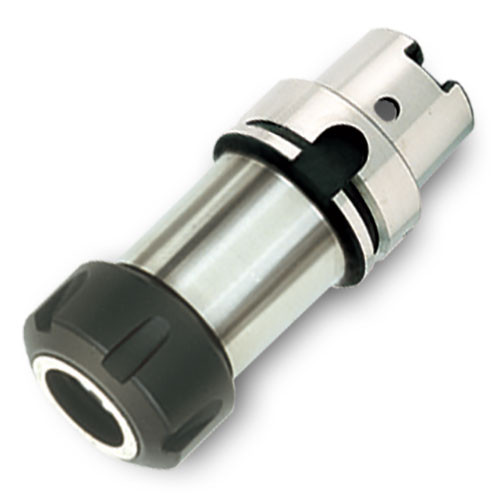

HSKE63ER20X75
Collet Chuck ; ER20 Connection Size ; 1.339″ Body Dia. ; HSK-E 63 Shank Dia. ; 0.512″ Max. Capacity

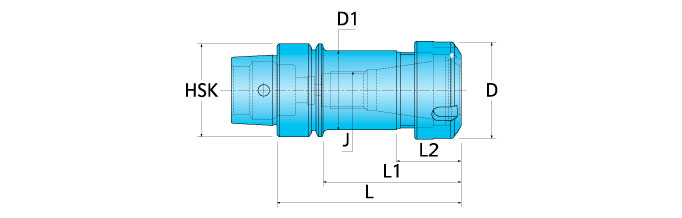

| Connection Size (CSI) | ER20 | Connection Diameter Machine Side (DCONMS) | HSK-E 63 |
| Body Diameter (BD) | 1.339″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.512″ |
| Protruding Length (LPR) | 8″ | Measurement Type | Inch |
| Body Length Maximum (LBX) | 1.929″ | Body Material | Steel |

Product Features
| Country of Origin | Israel |
Shipping Info
Package Weight
2.123
