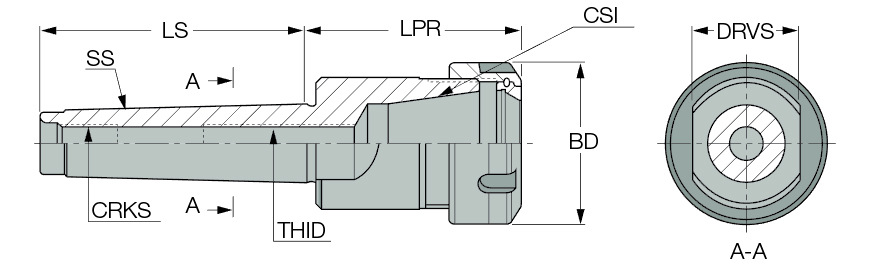

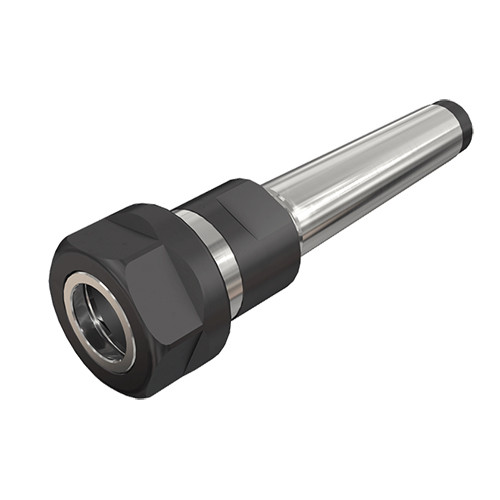

MT 3 ER32X 69
| Shank Size (SS) | 3 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER32 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 2 mm |
| Body Diameter (BD) | 50 mm | Connection Diameter Maximum Workpiece Side (DCONXWS) | 20 mm |
| Protruding Length (LPR) | 69 mm | Measurement Type | Metric |
| Shank Length (LS) | 81 mm | Drive Size (DRVS) | 24 mm |
| Tool Type | Morse Taper | Body Material | Steel |
Product Features
| Family Description | DIN 6499 ER collet chucks with DIN 228-2 Morse taper shanks. | Country of Origin | Israel |
Shipping Info
Package Weight
1.482
