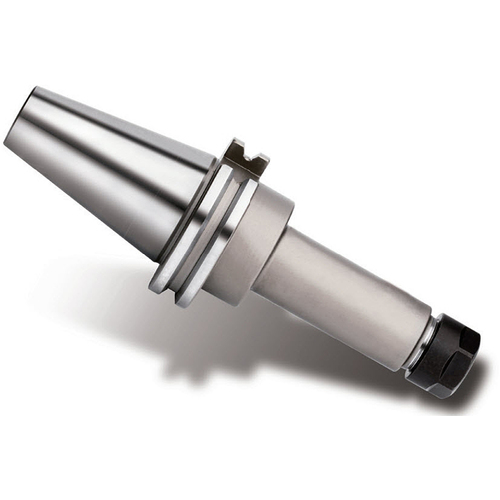

V40 ER-16 COLLET CHUCK-EXT
Collet Chuck ; CAT40 Shank Size ; ER16 Connection Size ; 1.1″ Body Dia. ; 0.019″ Min. Capacity ; 0.393″ Max. Capacity
| Shank Size (SS) | CAT40 | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Size (CSI) | ER16 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.019″ |
| Body Diameter (BD) | 1.1″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.393″ |
| Protruding Length (LPR) | 4.88″ | Type | CAT40-ER16-4.88 |
| Tool Type | ASME B5.50-2009-CAT | Connection Code Machine Side (CCMS) | CAT |
| Style | Extended |
Product Features
| Remarks | Supplied without the wrench. | Country of Origin | S.Korea |
Shipping Info
Package Length
8.13
Package Width
2.95
Package Height
2.95
Package Weight
3
