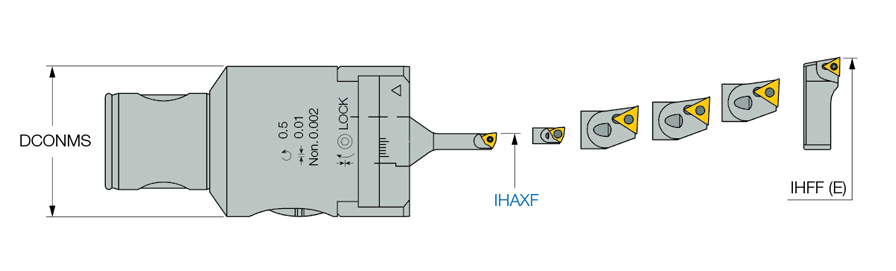

KIT BHE MB32-32 2.5-12 H
| Connection Diameter Machine Side (DCONMS) | 32 mm | Tool Type | MB Fine boring heads |
| Tool Diameter | 0.63″ | Measurement Type | Metric |
| Shank Size (SS) | MB32 | Body Material | Steel |
| Diameter Range | 0.63″ - 1.496″ | Cutting Diameter Minimum (DCN) | 2.5 mm |
| Overall Length (OAL) | 2.244″ | Cutting Diameter Maximum (DCX) | 12 mm |
| Application | | Boring Kits | ITSBORE System | |
Product Features
| Family Description | Contains a fine boring head with direct increment diametric adjustment to a precision of 0.01 mm and a circular vernier scale which indicates where the measurement lies, within 0.002 mm and various boring tools and inserts. | Country of Origin | Italy |
| Remarks | For kit contents and boring options, Click on "More Info". 0.01 mm direct diametric adjustment and 0.002 mm by a vernier scale. |
Shipping Info
Package Weight
3.086
