A-SDUCL 12-13-SL

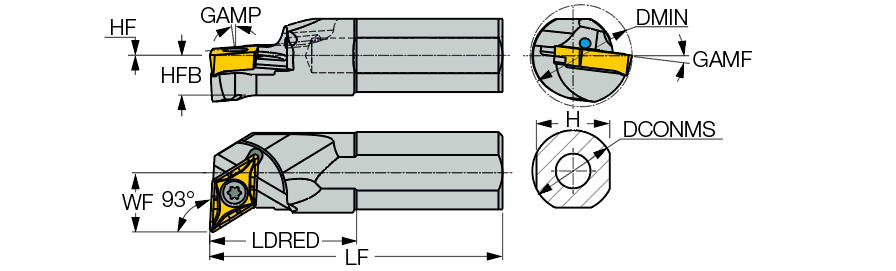

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 1.4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.67″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 0.57″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DCMT 13T5-SL | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features

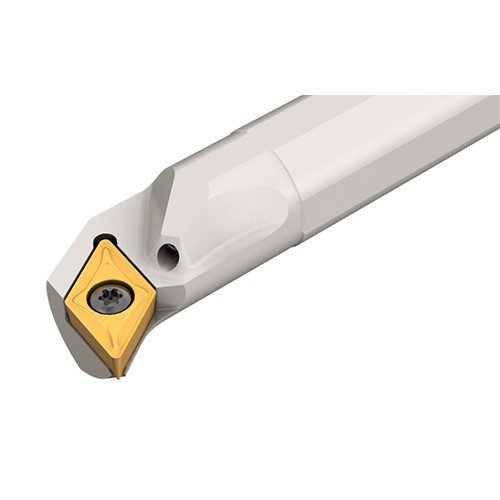

| Family Description | Screw lock boring bars carrying 55° rhombic inserts with 7° clearance angle. A long groove on the pocket and a matching ridge at the insert bottom ensure high rigidity in profiling applications. | Country of Origin | Israel |
Shipping Info
Package Weight
1.027
