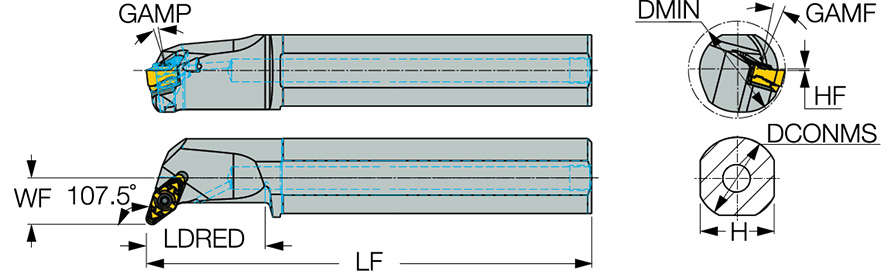

A-SVQNR 24-4-AL-JHP
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 13.705″ | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 2.36″ | Application | | Int. 35° Diamond 107.5°Approa | |
| Shank Height (H) | 1.417″ | Rake Angle Axial (GAMP) | 6.5 Degrees |
| Functional Width (WF) | 0.921″ | Rake Angle Radial (GAMF) | 14.5 Degrees |
| Master Insert Identification (MIID) | VNGU 220630-R3N | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 1.929″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

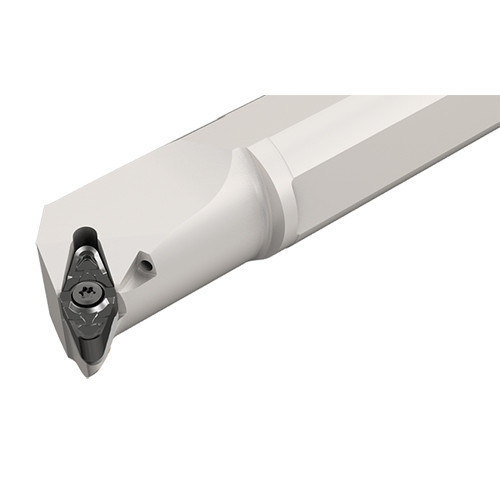

| Family Description | Screw lock boring bars carrying 35° rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
5.926
