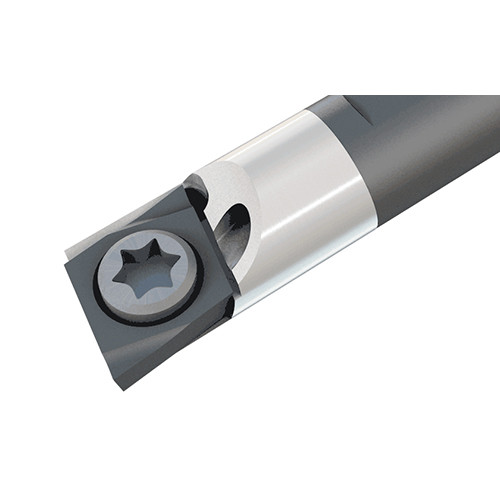

A04F SEXPR-03
Int. Turning Tool ; 3.15″ OAL ; 0.15″ Shank Height ; 0.157″ Shank Dia. ; 3.15″ LF ; 0.177″ Min Bore Dia. ; Steel

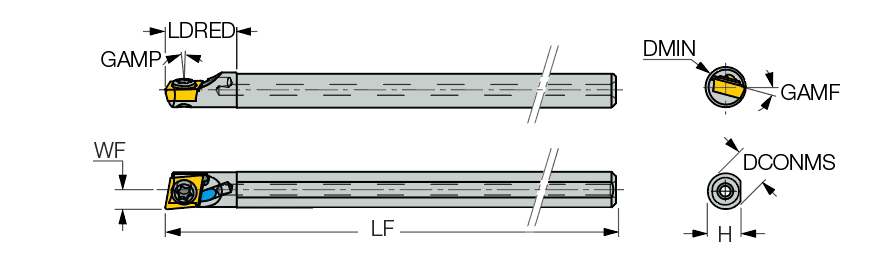

| Connection Diameter Machine Side (DCONMS) | 0.157″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 3.15″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 3.15″ | Application | | Int. 75° Diamond 100° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.315″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.15″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.091″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | EPGT 03 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.177″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw lock steel and solid carbide boring bars with coolant channels, carrying 75° rhombic inserts with 11° clearance for .177″ minimum bore diameter. | Country of Origin | Japan |
| Remarks | A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.061
