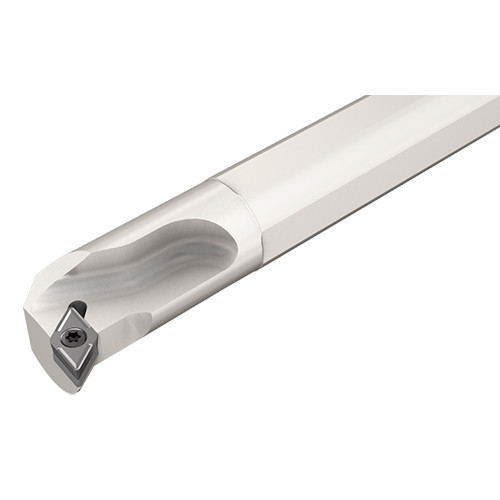

A-SDUCR 10-2
Int. Turning Tool ; 7″ OAL ; 0.6″ Shank Height ; 5/8″ Shank Dia. ; 7″ LF ; 7/8″ Min Bore Dia. ; Steel

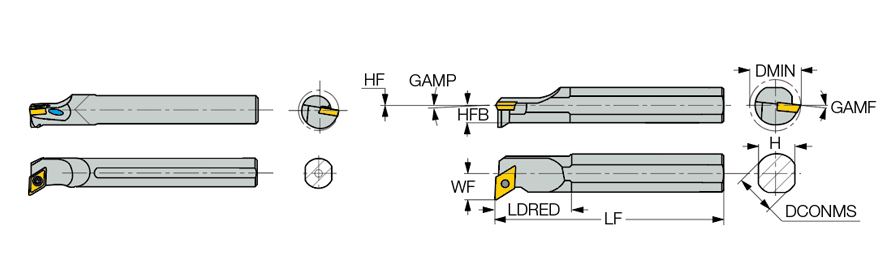

| Connection Diameter Machine Side (DCONMS) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 1-1/4″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.6″ | Rake Angle Radial (GAMF) | -4 Degrees |
| Functional Width (WF) | 0.531″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DC.. 2 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 7/8″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Screw lock boring bars for 55° rhombic inserts with 7° clearance. | Country of Origin | Japan |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
Package Weight
0.584
