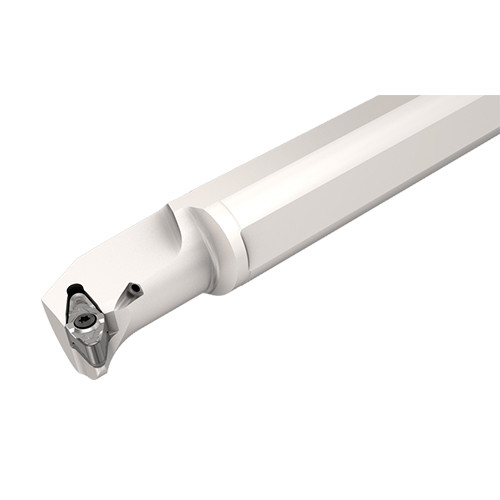

A40U SVLFNR-22-AL-JHP

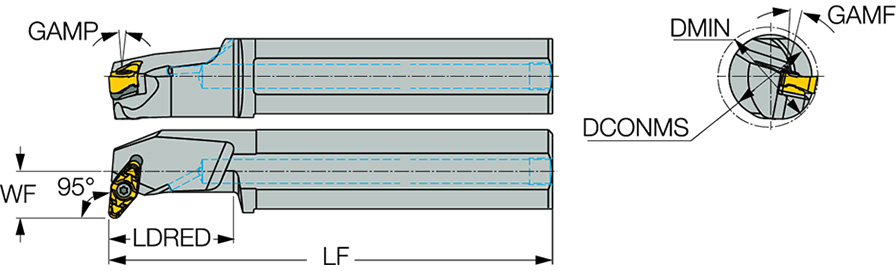

| Connection Diameter Machine Side (DCONMS) | 40 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 350 mm | Shank Type | Round Shank w/3 Flats |
| Reduced Body Diameter Length (LDRED) | 60 mm | Application | | Int. 35° Diamond 95° Approach | |
| Shank Height (H) | 36 mm | Rake Angle Axial (GAMP) | 4.5 Degrees |
| Functional Width (WF) | 22.5 mm | Rake Angle Radial (GAMF) | 11 Degrees |
| Master Insert Identification (MIID) | VNGU 220630-R3N | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 48 mm | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | 95° lead angle screw lock boring bars carrying 35° rhombic inserts with 7° clearance. | Country of Origin | Israel |
Shipping Info
Package Weight
6.371
