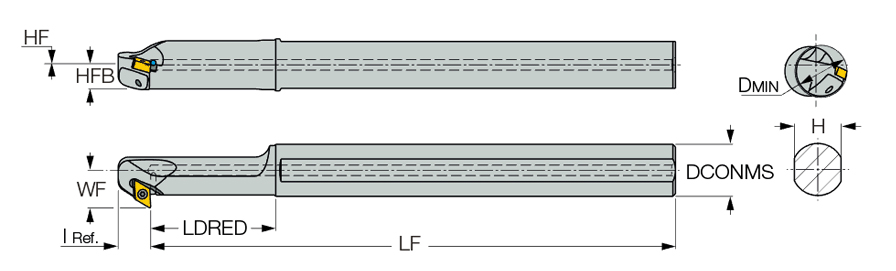

E12Q SDZNL-07
| Connection Diameter Machine Side (DCONMS) | 0.472″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7.087″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7.598″ | Application | | Int. 55° Diamod 93° Back Appro | |
| Shank Height (H) | 0.433″ | Rake Angle Axial (GAMP) | -11 Degrees |
| Functional Width (WF) | 0.413″ | Rake Angle Radial (GAMF) | -11 Degrees |
| Master Insert Identification (MIID) | DNGP 22.. | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.709″ | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Back turning Boring bars with steel and carbide shanks carrying DNGP 22.. 55° rhombic inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use right-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.597
