AVC-D40-DVUNL-16T

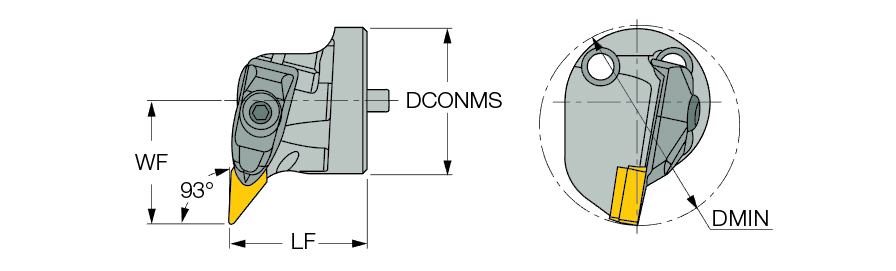

| Connection Diameter Machine Side (DCONMS) | 1.575″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 1.496″ | Application | | Int. 35° Diamond 93° Approach | |
| Functional Width (WF) | 1.339″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Master Insert Identification (MIID) | VNMG 332-F3M | Rake Angle Radial (GAMF) | 0 Degrees |
| Minimum Bore Diameter (DMIN) | 2.205″ | Body Material | Steel |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Interchangeable boring heads carrying 35° rhombic Inserts. | Country of Origin | China |
Shipping Info
Package Weight
0.445
