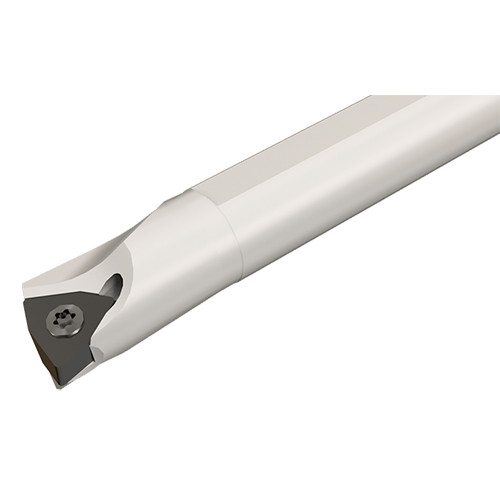

E12Q SWLNL-04

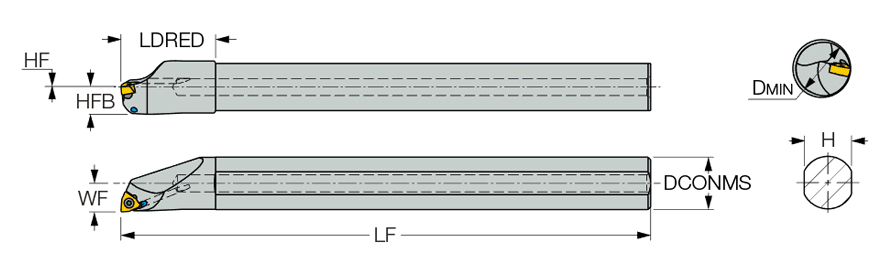

| Connection Diameter Machine Side (DCONMS) | 0.472″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7.087″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7.087″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.063″ | Rake Angle Axial (GAMP) | -10 Degrees |
| Shank Height (H) | 0.433″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 0.276″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNGP 04 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.551″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand |
Product Features
| Family Description | Boring bars with steel and carbide shanks for small diameters, carrying WNGP 0403.. trigon inserts with negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | Country of Origin | Japan |
| Remarks | Use left-hand inserts on right-hand bars and vice versa. A - steel shank with coolant hole, E - carbide shank with coolant hole. |
Shipping Info
Package Weight
0.600
