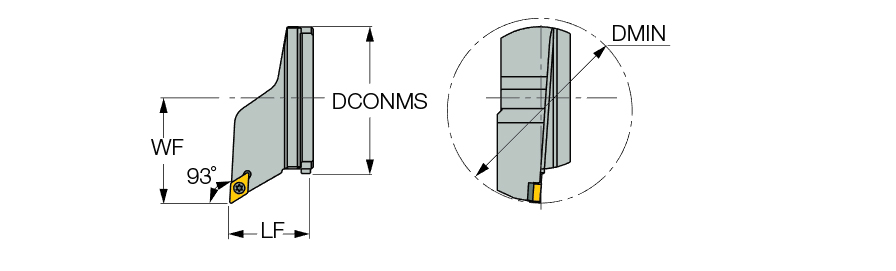

| Connection Diameter Machine Side (DCONMS) | 3.031″ | Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 1.772″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 1.772″ | Shank Type | Round Shank w/3 Flats |
| Functional Width (WF) | 2.244″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Master Insert Identification (MIID) | DCMT 11T304 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 3.937″ | Measurement Type | Inch |

Product Features

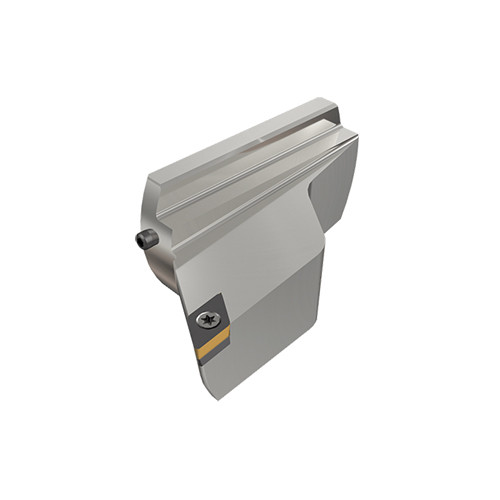

| Family Description | Interchangeable boring heads carrying 55° rhombic inserts with 7° clearance. | Country of Origin | China |
Shipping Info
Package Weight
1.340
