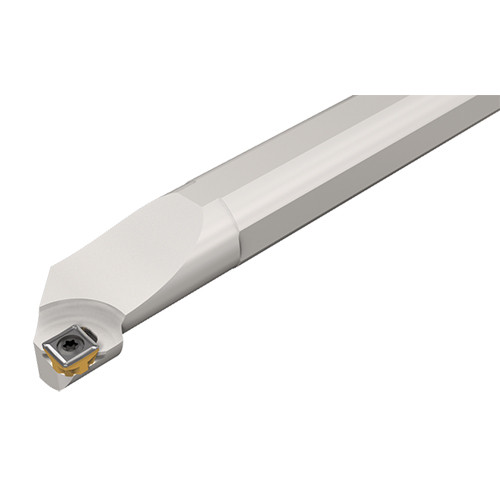

S16Q SUXCL-10 CM
Int. Turning Tool ; 180 mm OAL ; 15 mm Shank Height ; 16 mm Shank Dia. ; 20 mm Min Bore Dia. ; Steel

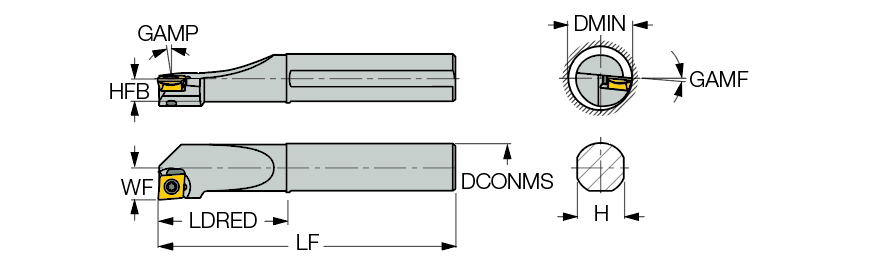

| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 180 mm | Application | | Int. 80° Diamond 95° Approach | Int. 80° Q#MG 95° Approach | Int. 90° Square 45° Approach | Int. Round Face & Turn | |
| Overall Length (OAL) | 180 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 45 mm | Rake Angle Radial (GAMF) | -12 Degrees |
| Shank Height (H) | 15 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 11 mm | Body Material | Steel |
| Master Insert Identification (MIID) | CC95MT 10.. | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 20 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Left Hand |
Product Features

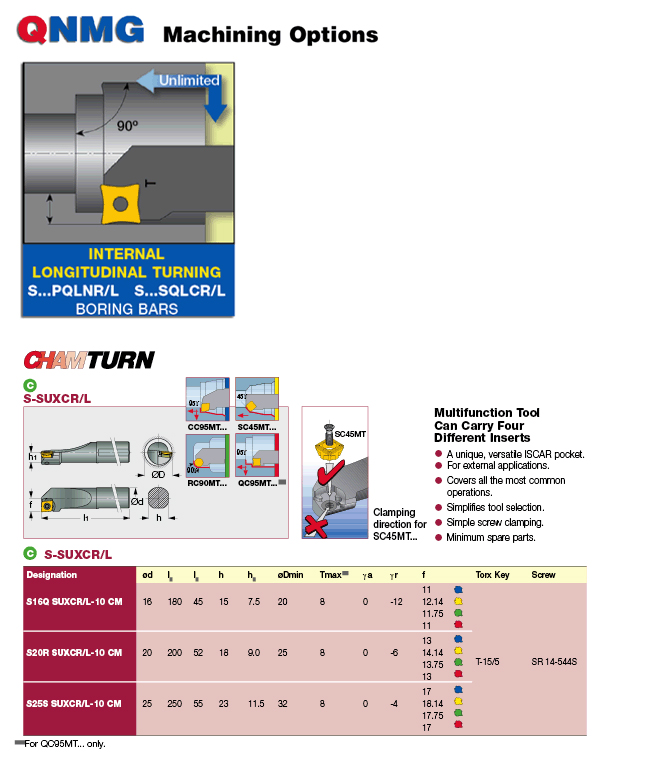

| Family Description | Screw lock boring bars carrying four different 7° clearance geometries. CHAMTURN - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
| Remarks | The displayed data refers to CC95MT inserts, for other combinations and for Tmax, click on More Info |
Shipping Info
Package Weight
0.644
