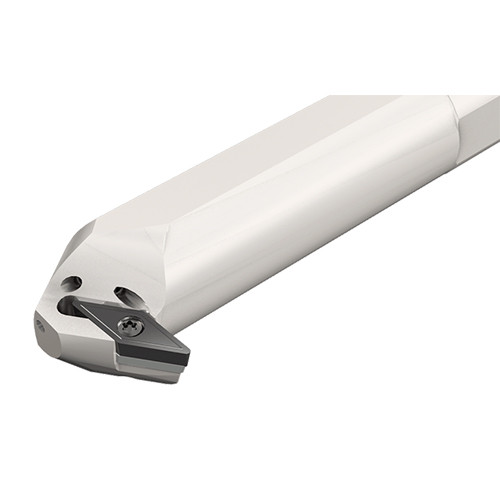

S40U SVLBCR-16
Int. Turning Tool ; 370 mm OAL ; 36 mm Shank Height ; 40 mm Shank Dia. ; 49.5 mm Min Bore Dia. ; Steel

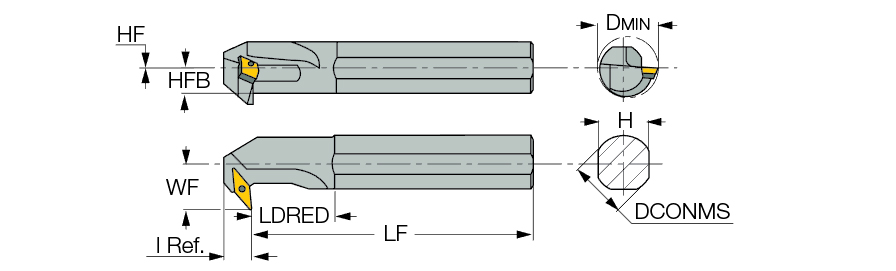

| Connection Diameter Machine Side (DCONMS) | 40 mm | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 350 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 370 mm | Application | | Int. 35° Diamo 95° Back Approa | |
| Reduced Body Diameter Length (LDRED) | 60 mm | Rake Angle Axial (GAMP) | -0.5 Degrees |
| Shank Height (H) | 36 mm | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 27 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC.. 1604 | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 49.5 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
Product Features
| Family Description | Screw lock back boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
7.288
