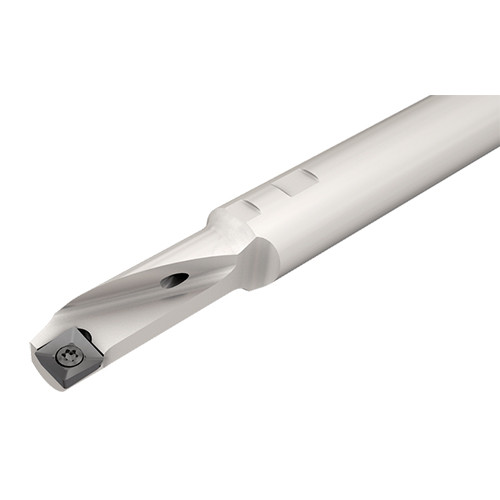

A08K SXFOR-2
Int. Turning Tool ; 5″ OAL ; 1/2″ Shank Dia. ; 5″ LF ; 0.395″ Min Bore Dia. ; Steel

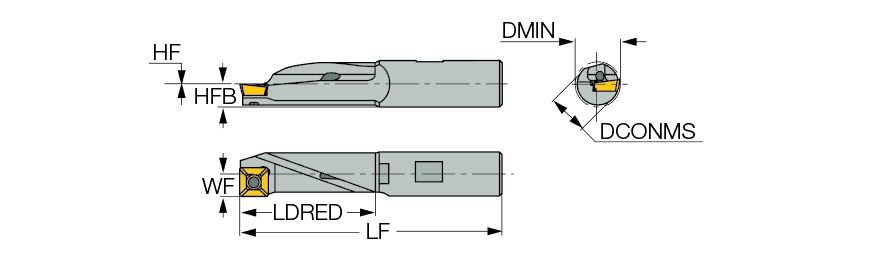

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 5″ | Application | | Int. XOMT 88° Approach | |
| Overall Length (OAL) | 5″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Reduced Body Diameter Length (LDRED) | 1-1/8″ | Rake Angle Radial (GAMF) | 1.8 Degrees |
| Functional Width (WF) | 0.19″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | XOMT 060204-DT | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 0.395″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Boring bars with coolant holes using XOMT inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
0.211
