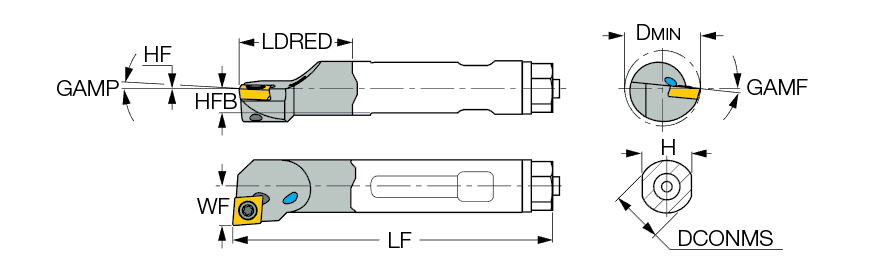

E12 SCLCR-06 HEAD
Int. Turning Tool ; 179 mm OAL ; 11 mm Shank Height ; 12 mm Shank Dia. ; 15.8 mm Min Bore Dia. ; Carbide
| Connection Diameter Machine Side (DCONMS) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 179 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 179 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 24.8 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 11 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 9 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT/CCGT 0602 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 15.8 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features

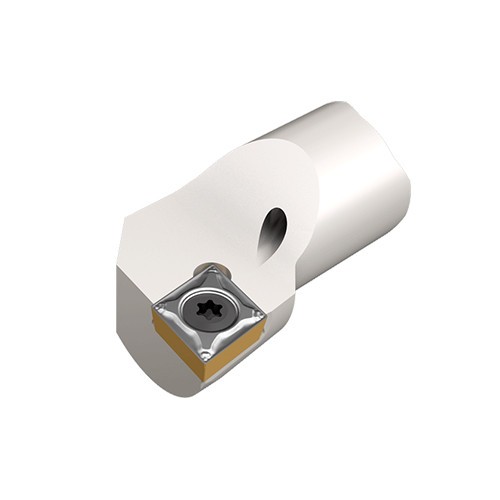

| Family Description | Interchangeable screw clamped boring heads carrying 80° rhombic inserts with positive 7° clearance mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.082
