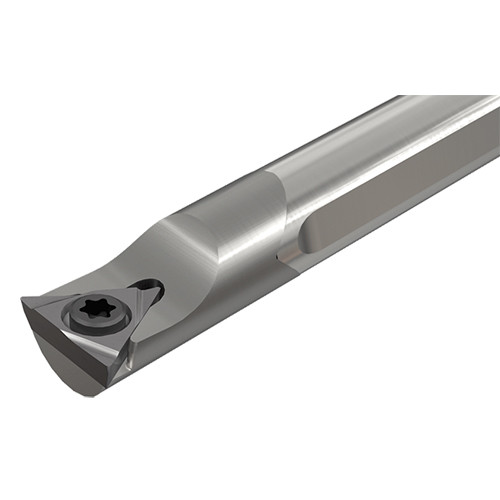

MG 08-STFPR-09X
Int. Turning Tool ; 3.11″ OAL ; 0.315″ Shank Dia. ; 3.11″ LF ; 0.374″ Min Bore Dia. ; Steel

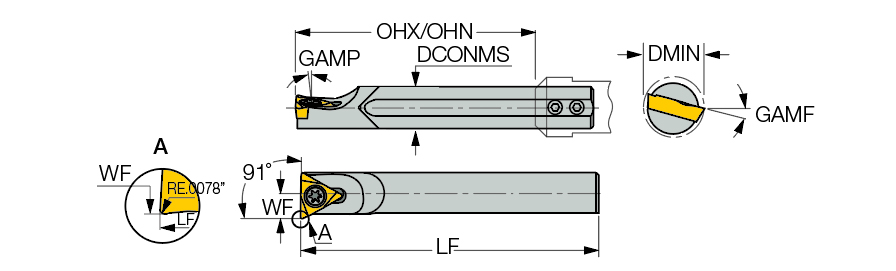

| Connection Diameter Machine Side (DCONMS) | 0.315″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 3.11″ | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 3.11″ | Rake Angle Axial (GAMP) | 5 Degrees |
| Functional Width (WF) | 0.193″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Master Insert Identification (MIID) | TPGX 73... | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.374″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features
| Family Description | PASSPORT adjustable protrusion solid carbide boring bar carrying TPGX inserts, for small diameters. | Country of Origin | Israel |
Shipping Info
Package Weight
0.158
