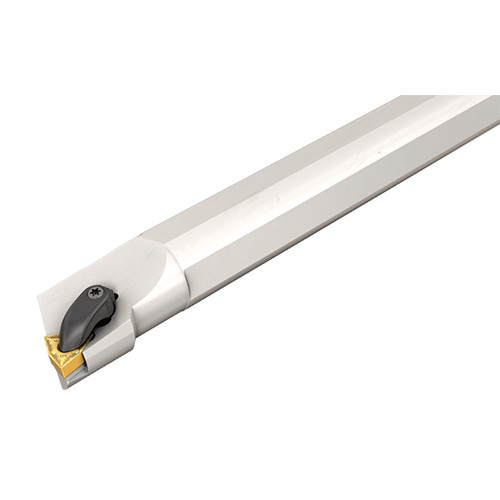

S-DWLNR 20-4
Int. Turning Tool ; 14″ OAL ; 1.14″ Shank Height ; 1-1/4″ Shank Dia. ; 1.45″ Min Bore Dia. ; Steel

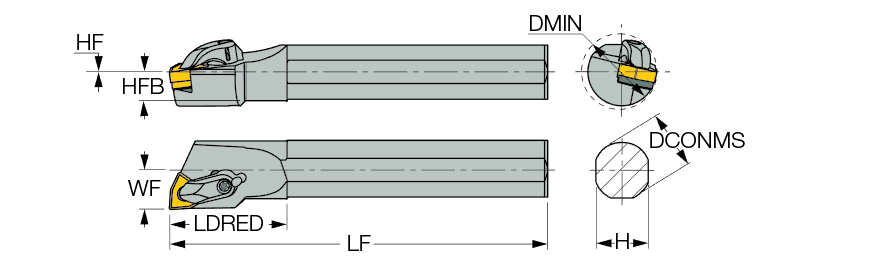

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 14″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 14″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 2.16″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.14″ | Rake Angle Radial (GAMF) | -10 Degrees |
| Functional Width (WF) | 0.76″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 431-GN | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.45″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | R-Clamp boring bars carrying negative trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
4.758
