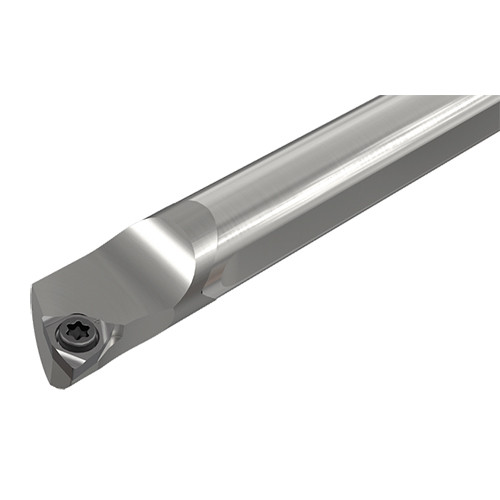

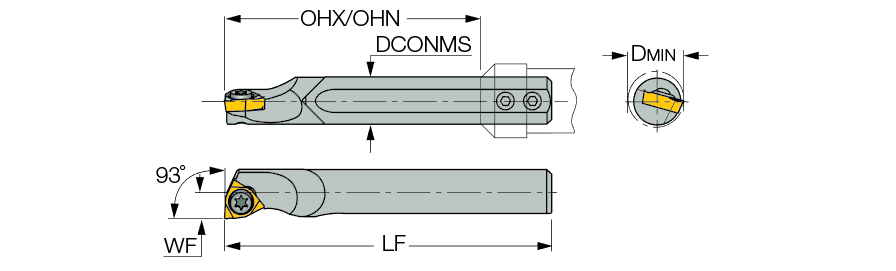

MG 06-SWUCR-02
Int. Turning Tool ; 2.362″ OAL ; 0.236″ Shank Dia. ; 2.362″ LF ; 0.26″ Min Bore Dia. ; Carbide
| Connection Diameter Machine Side (DCONMS) | 0.236″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 2.362″ | Application | | Int. 80° Trigon 93° Approach | |
| Overall Length (OAL) | 2.362″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Width (WF) | 0.13″ | Rake Angle Radial (GAMF) | 15 Degrees |
| Master Insert Identification (MIID) | WCGT 0201 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.26″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | External | Measurement Type | Inch |
Product Features
| Family Description | Solid Carbide Boring Bars Carrying WCGT Trigon Inserts for Small Diameters. Protrusion may be adjusted in the PASSPORT holders. | Country of Origin | Israel |
Shipping Info
Package Length
3.50000
Package Width
1.21600
Package Height
1.21600
Package Weight
0.074
