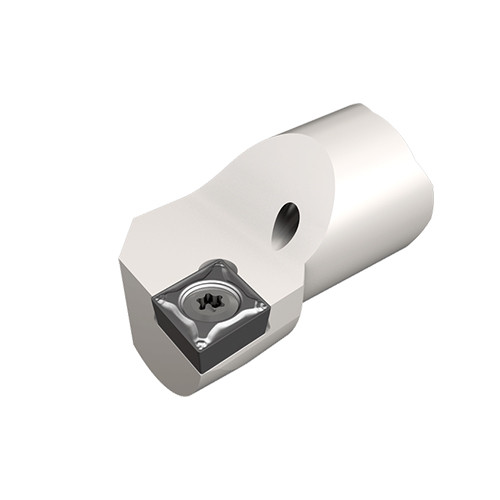

E-SCLCR 8-2 HEAD
Int. Turning Tool ; 7″ OAL ; 0.46″ Shank Height ; 1/2″ Shank Dia. ; 0.63″ Min Bore Dia. ; Carbide

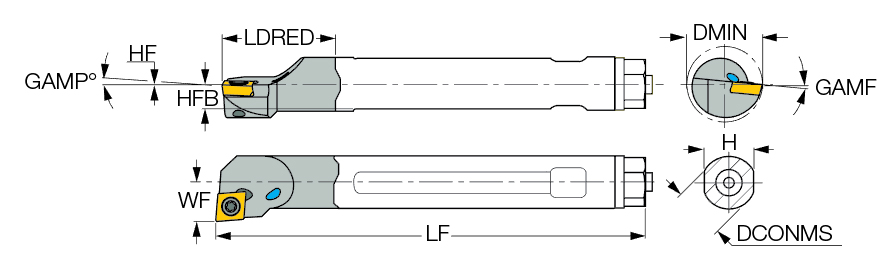

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 0.98″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.46″ | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 0.35″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT/CCGT 2 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.63″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Interchangeable screw clamped boring heads carrying 80° rhombic inserts with positive 7° clearance mounted on carbide bars. | Country of Origin | Israel |
Shipping Info
Package Weight
0.071
