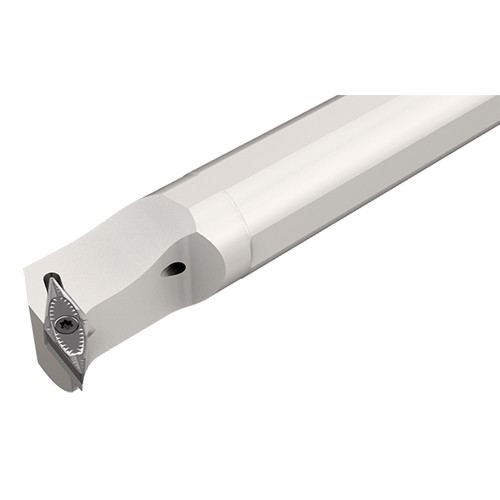

A-SVLFCR 24-4
Int. Turning Tool ; 13.78″ OAL ; 1.417″ Shank Height ; 1-1/2″ Shank Dia. ; 1.77″ Min Bore Dia. ; Steel

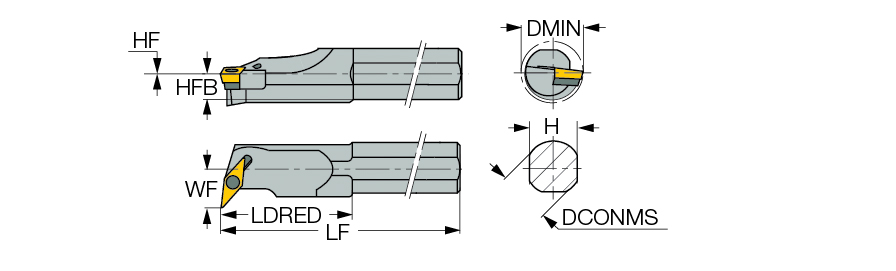

| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 13.78″ | Application | | Int. 35° Diamond 95° Approach | |
| Overall Length (OAL) | 13.78″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 2.8″ | Rake Angle Radial (GAMF) | -8 Degrees |
| Shank Height (H) | 1.417″ | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 1″ | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.77″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw lock boring bars for 35° rhombic inserts with 7° clearance. Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
5.767
