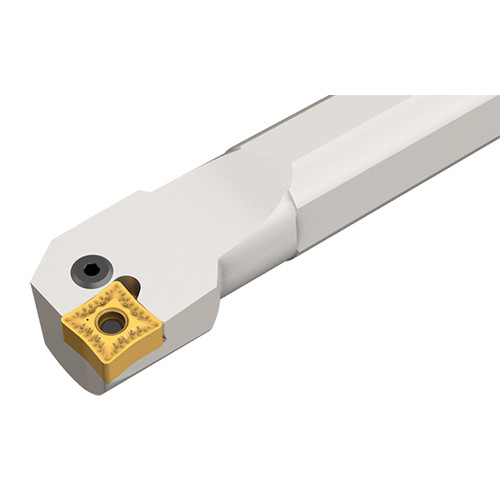

S-PQLNR 12-3
Int. Turning Tool ; 10″ OAL ; 0.67″ Shank Height ; 3/4″ Shank Dia. ; 1″ Min Bore Dia. ; Steel

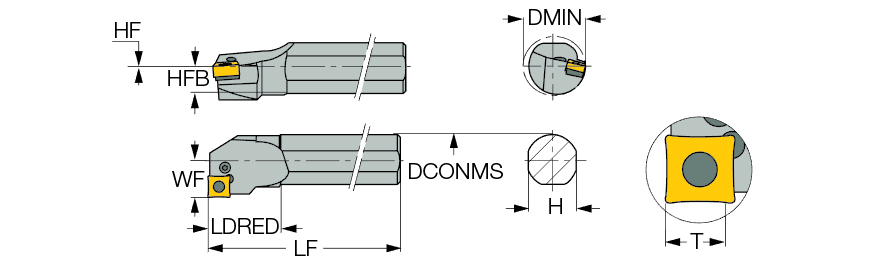

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 80° Q#MG 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.67″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Functional Width (WF) | 1/2″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | QNMG 3.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Lever lock boring bars for negative square inserts with 80° corners. | Country of Origin | Israel |
| Remarks | For T, click on More Info |
Shipping Info
Package Weight
1.237
