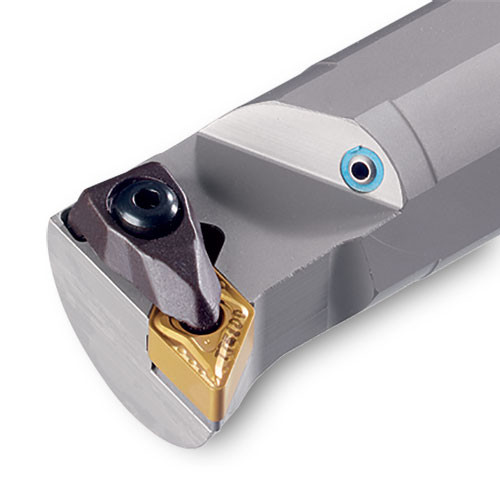

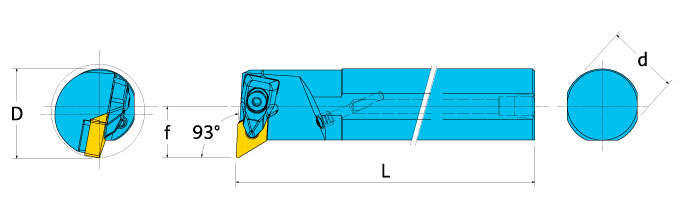

A32V-TDUNR-4
Int. Turning Tool; 2″ Shank Dia. × 16″ LF × 16″ OAL × 2-3/4″ Min. Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 16″ | Shank Type | Round Shank w/3 Flats |
| Functional Width (WF) | 1-1/2″ | Frontal Edge Angle | 93 Degrees |
| Minimum Bore Diameter (DMIN) | 2-3/4″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Holders for 1/2″ IC Inserts are Compatible with Combi-Clamp | Country of Origin | S.Korea |
Shipping Info
Package Weight
13.547
