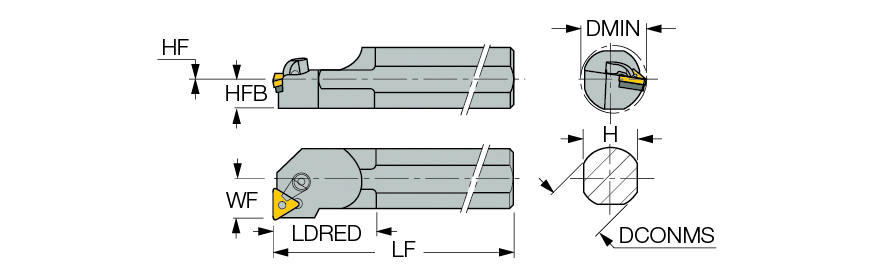

A-MTFNR 24-4

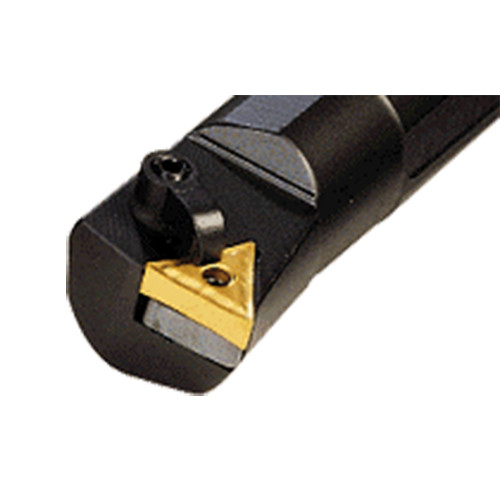

Int. Turning Tool ; 14″ OAL ; 1-1/2″ Shank Dia. ; 14″ LF ; 2.062″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 14″ | Application | | Int. 60° Triangle 91° Approach | |
| Overall Length (OAL) | 14″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 1.03″ | Rake Angle Radial (GAMF) | -12 Degrees |
| Master Insert Identification (MIID) | TN..43.. | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 2.062″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Cutting Position | Internal |
| Coolant Supply Property (CSP) | Coolant Thru | Measurement Type | Inch |
Product Features
| Family Description | Comlock boring bars for negative triangular inserts. | Country of Origin | USA |
Shipping Info
Package Weight
7.032
