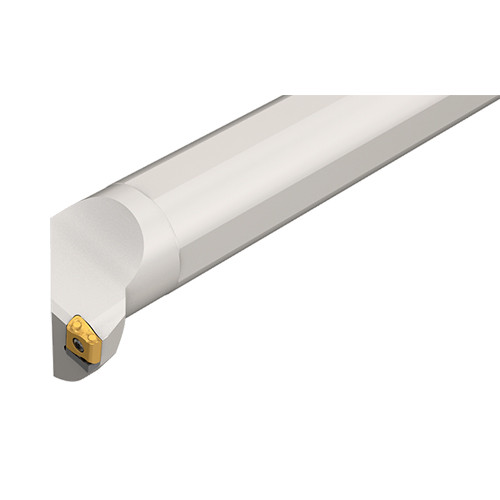

S-SLANL 20-11 TANG
Int. Turning Tool ; 14″ OAL ; 1.171″ Shank Height ; 1-1/4″ Shank Dia. ; 2.087″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 14″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 14″ | Application | | Int. Tangential 93° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.97″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.171″ | Rake Angle Radial (GAMF) | -15 Degrees |
| Functional Width (WF) | 0.87″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | LNMX 1104.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 2.087″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Boring bars carrying LNMX tangentially screw clamped inserts with 4 cutting edges for high metal removal rates. | Country of Origin | Israel |
| Remarks | Right-hand inserts for left-hand bars. Left-hand inserts for right-hand bars. |
Shipping Info
Package Weight
4.872
