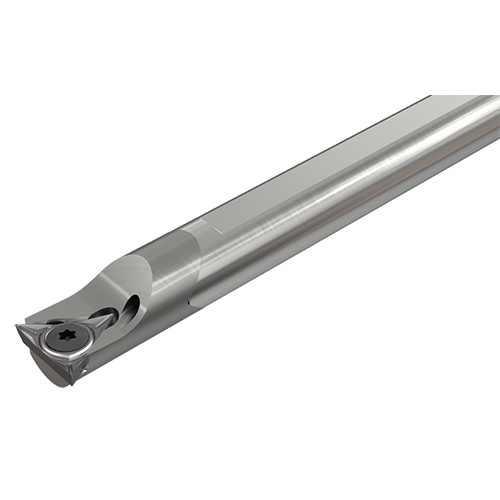

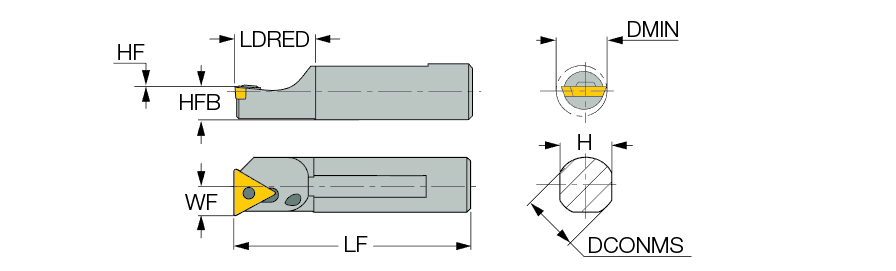

E-STFPR 8-2
Int. Turning Tool ; 7″ OAL ; 0.464″ Shank Height ; 1/2″ Shank Dia. ; 7″ LF ; 0.555″ Min Bore Dia. ; Carbide
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7″ | Application | | Int. 60° Triangle 91° Approach | |
| Shank Height (H) | 0.464″ | Rake Angle Axial (GAMP) | 4 Degrees |
| Functional Width (WF) | 0.29″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | TPMT 2-1-PF | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.555″ | Body Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars for triangular inserts with 11° clearance. E - Carbide shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
0.65
