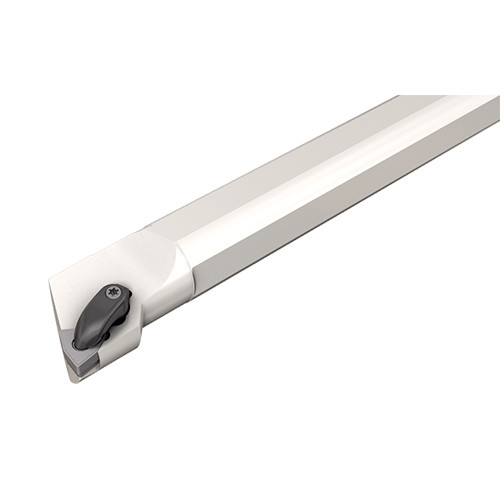

S40V DWLNR-08

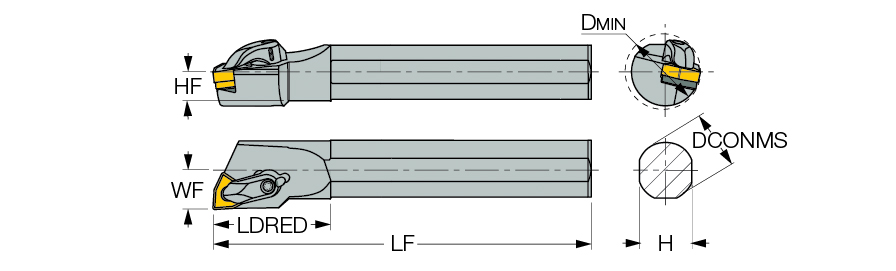

| Connection Diameter Machine Side (DCONMS) | 40 mm | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 400 mm | Application | | Int. 80° Trigon 95° Approach | |
| Overall Length (OAL) | 400 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Reduced Body Diameter Length (LDRED) | 55 mm | Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 36 mm | Tool Type | Internal Indexble -Turn Tool |
| Functional Width (WF) | 27 mm | Body Material | Steel |
| Master Insert Identification (MIID) | WNMG 0804 | Cutting Position | Internal |
| Minimum Bore Diameter (DMIN) | 60 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | R-Clamp boring bars carrying negative trigon inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
8.113
