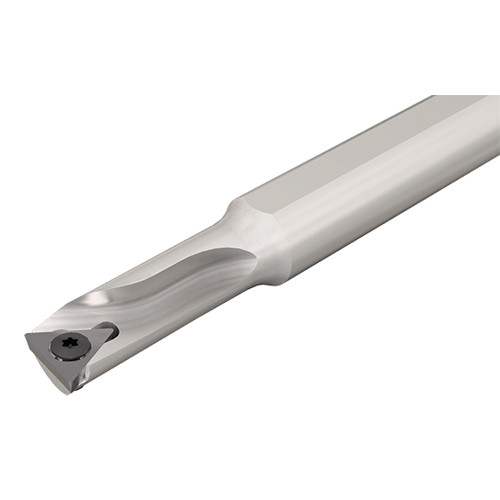

BBN 8-2
Int. Turning Tool ; 6″ OAL ; 0.46″ Shank Height ; 1/2″ Shank Dia. ; 6″ LF ; 0.551″ Min Bore Dia. ; Steel

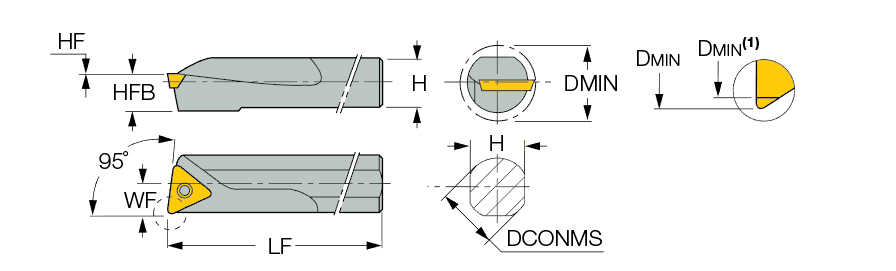

| Connection Diameter Machine Side (DCONMS) | 1/2″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 6″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 6″ | Application | | Int. 60° Triangle 95° Approach | |
| Shank Height (H) | 0.46″ | Rake Angle Axial (GAMP) | 4 Degrees |
| Functional Width (WF) | 0.29″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Master Insert Identification (MIID) | TP.. 2 | Tool Type | Internal Indexble -Turn Tool |
| Minimum Bore Diameter (DMIN) | 0.551″ | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars for 11° clearance triangular inserts. | Country of Origin | Israel |
| Remarks | (1) When used with insert TPG-XL Dmin=Dmin -.046 |
Shipping Info
Package Weight
0.381
