A-PDUNR 20-4
Int. Turning Tool ; 12″ OAL ; 29″ Shank Height ; 1-1/4″ Shank Dia. ; 12″ LF ; 42″ Min Bore Dia. ; Steel

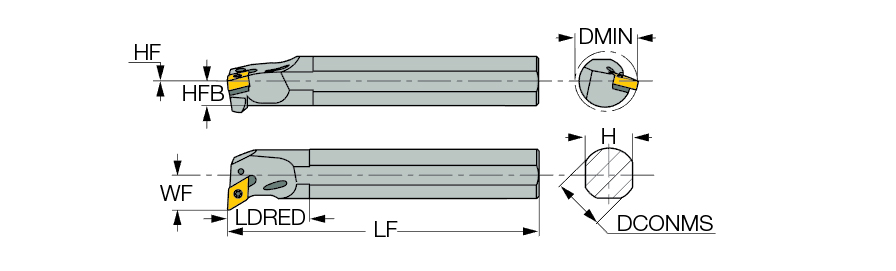

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Reduced Body Diameter Length (LDRED) | 1.874″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 29″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 1″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 4.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 42″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

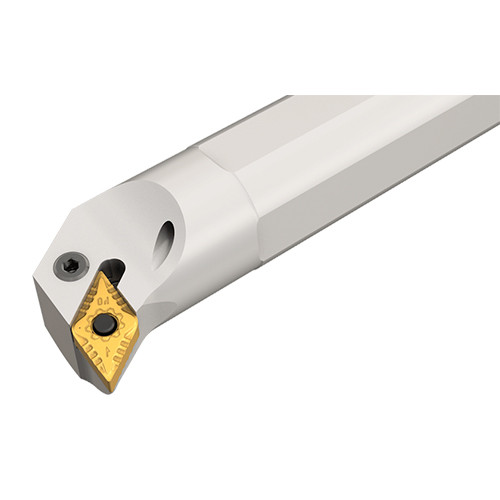

| Family Description | Steel shank with coolant hole lever-lock boring bars for 55° negative rhombic inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
5.511
