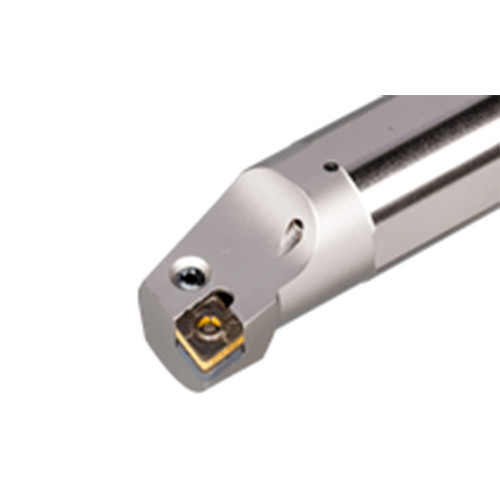

A-PCLNL 20-3X
Int. Turning Tool ; 10″ OAL ; 1.142″ Shank Height ; 1-1/4″ Shank Dia. ; 1.551″ Min Bore Dia. ; Steel

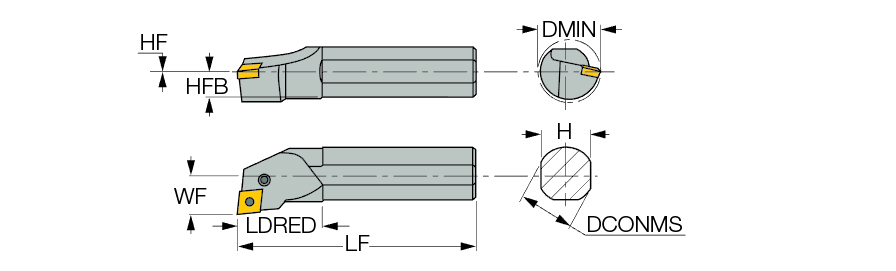

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.575″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 1.142″ | Rake Angle Radial (GAMF) | -13 Degrees |
| Functional Width (WF) | 0.77″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CNMX 34. CNMG 33. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.551″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features

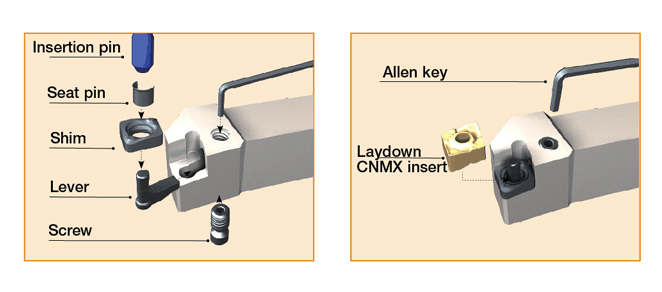

| Family Description | Lever lock boring bars for negative HELITURNLD CNMX inserts. Used for heavy internal turning applications. | Country of Origin | Israel |
Shipping Info
Package Weight
2.859
