A-MULNL 20-4MW
Int. Turning Tool ; 14″ OAL ; 1.142″ Shank Height ; 1-1/4″ Shank Dia. ; 1.496″ Min Bore Dia. ; Steel

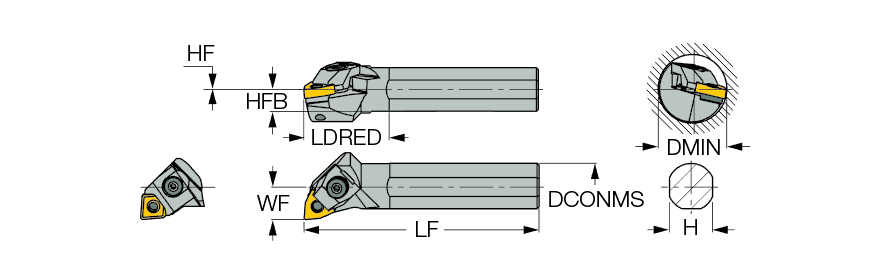

| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 14″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 14″ | Application | | Int. 80° Diamond 95° Approach | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.73″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Shank Height (H) | 1.142″ | Rake Angle Radial (GAMF) | 12 Degrees |
| Functional Width (WF) | 0.77″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 431-GN | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.496″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | MULTI-WEDGE lock, boring bars for negative 80° rhombic, trigon and square inserts. | Country of Origin | Israel |
| Remarks | Only LC WN08 is supplied with the boring bar. The other wedge should be ordered separately. RH wedge for RH tool. LH wedge for LH tool. For other wedges see more info. |
Shipping Info
Package Weight
4.129
