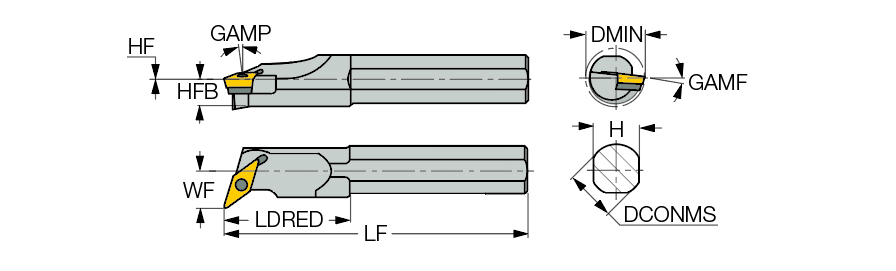

A-SVQCL 24-4
| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Reduced Body Diameter Length (LDRED) | 13.78″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC..2205.. | Body Material | Steel |
| Cutting Direction (HAND) | Right Hand | Rake Angle | -8Degrees |
Product Features
| Family Description | Screw lock boring bars carrying the 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Weight
5.9950
