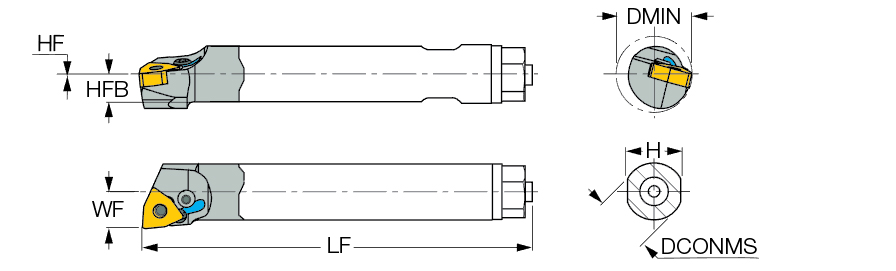

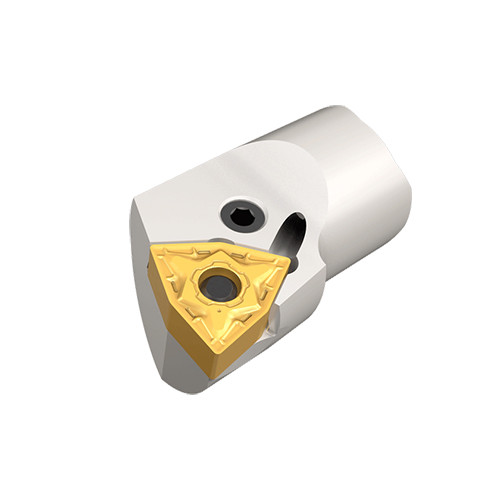

E-PWLNR 10-3 HEAD
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 7″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 7″ | Application | | Int. 80° Trigon 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 1.17″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.59″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 0.43″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | WNMG 3-1-GN | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 0.866″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand |
Product Features
| Family Description | Lever lock interchangeable boring heads for negative WNMG trigon inserts, clamped on a solid carbide shank. | Country of Origin | Israel |
Shipping Info
Package Weight
0.121
