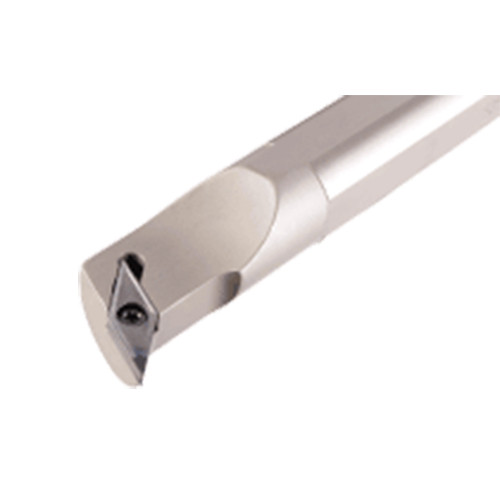

S-SVQCL 16-3
Int. Turning Tool ; 12″ OAL ; 0.92″ Shank Height ; 1″ Shank Dia. ; 12″ LF ; 1.22″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 12″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 12″ | Application | | Int. 35° Diamond 107.5°Approa | |
| Reduced Body Diameter Length (LDRED) | 2.44″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.92″ | Rake Angle Radial (GAMF) | -5 Degrees |
| Functional Width (WF) | 0.63″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | VC..33.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1.22″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw lock boring bars carrying 35° rhombic inserts with 7° clearance. S - Steel shank; A - Steel shank with coolant hole. | Country of Origin | Israel |
Shipping Info
Package Length
12.00000
Package Width
1.16000
Package Height
1.12000
Package Weight
2.447
