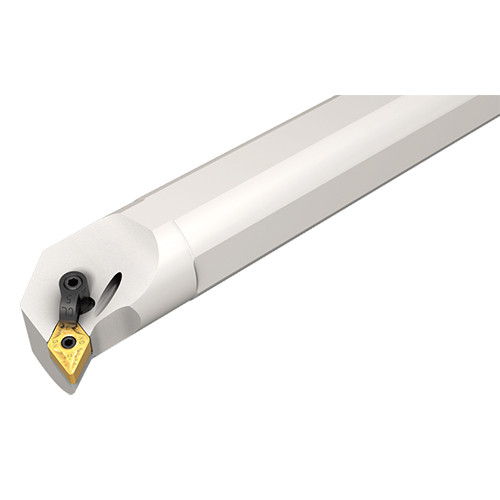

A-MDUNR 16-3
Int. Turning Tool ; 10″ OAL ; 1″ Shank Dia. ; 10″ LF ; 1-1/4″ Min Bore Dia. ; Steel

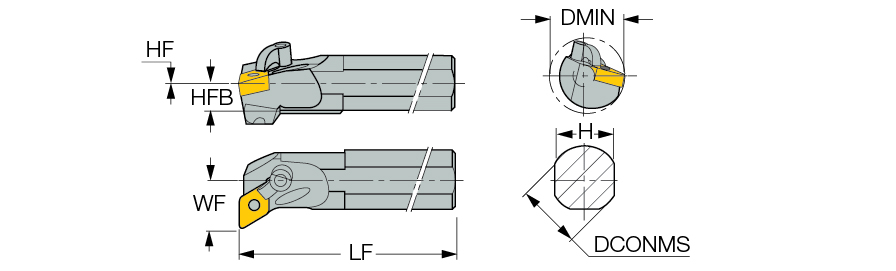

| Connection Diameter Machine Side (DCONMS) | 1″ | Shank Type | Round Shank w/3 Flats |
| Functional Length (LF) | 10″ | Application | | Int. 55° Diamond 93 95° Approac | |
| Overall Length (OAL) | 10″ | Rake Angle Axial (GAMP) | -13 Degrees |
| Reduced Body Diameter Length (LDRED) | 1.58″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 0.67″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | DNMG 332-GN | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-1/4″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Clamp-lock boring bars with coolant holes for negative 55° inserts. | Country of Origin | Israel |
Shipping Info
Package Weight
1.754
