A-PTFNR 16-3X
Int. Turning Tool ; 8″ OAL ; 0.9″ Shank Height ; 1″ Shank Dia. ; 8″ LF ; 1-1/4″ Min Bore Dia. ; Steel

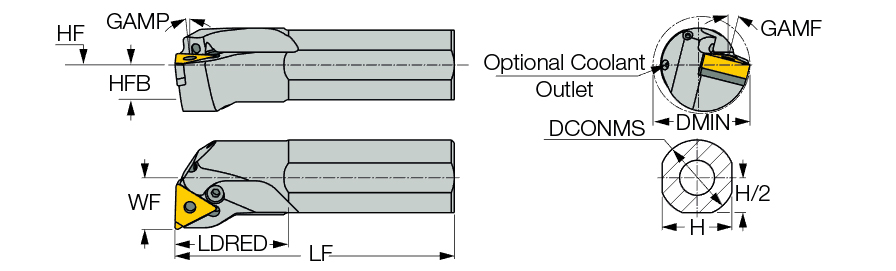

| Connection Diameter Machine Side (DCONMS) | 1″ | Coolant Supply Property (CSP) | Coolant Thru |
| Functional Length (LF) | 8″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 8″ | Application | | Int. 60° Triangle 91° Approach | |
| Reduced Body Diameter Length (LDRED) | 1-1/2″ | Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Height (H) | 0.9″ | Rake Angle Radial (GAMF) | -14 Degrees |
| Functional Width (WF) | 0.6″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | TNMX 34. TNMG 33. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1-1/4″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features
| Family Description | 91° entering angle lever lock boring bars carrying negative TNMX or TNMG triangular inserts | Country of Origin | Israel |
| Remarks | Use TTX 3 seat for TNMX 34. inserts and TTN 3 seat for TNMG 33. inserts |
Shipping Info
Package Weight
0.302
