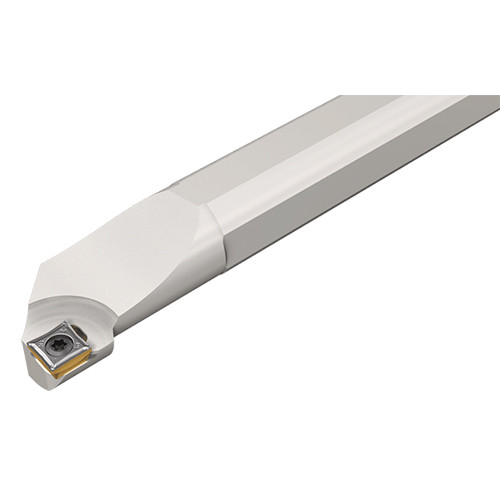

S-SUXCR 12-10 CM
Int. Turning Tool ; 10″ OAL ; 0.67″ Shank Height ; 3/4″ Shank Dia. ; 10″ LF ; 1″ Min Bore Dia. ; Steel

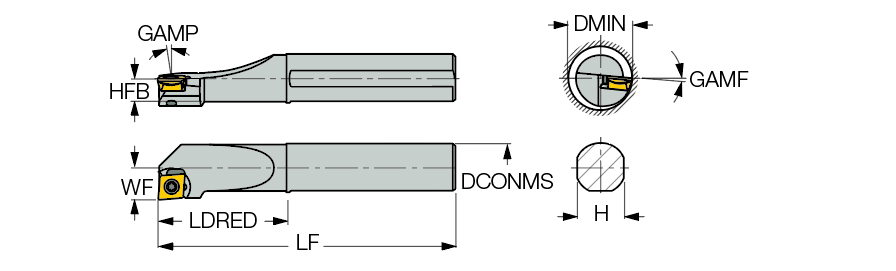

| Connection Diameter Machine Side (DCONMS) | 3/4″ | Coolant Supply Property (CSP) | External |
| Functional Length (LF) | 10″ | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 10″ | Application | | Int. 80° Diamond 95° Approach | Int. 80° Q#MG 95° Approach | Int. 90° Square 45° Approach | Int. Round Face & Turn | |
| Reduced Body Diameter Length (LDRED) | 2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 0.67″ | Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Width (WF) | 1/2″ | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CC95MT 10.. | Body Material | Steel |
| Minimum Bore Diameter (DMIN) | 1″ | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
Product Features

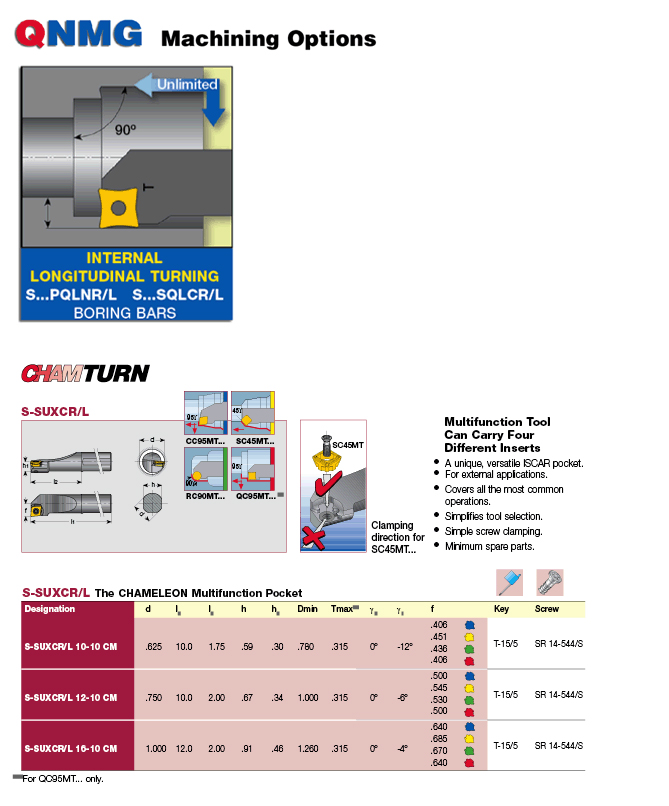

| Family Description | Screw lock boring bars carrying four different 7° clearance geometries. CHAMTURN - part of the CHAMELEON multifunction system. | Country of Origin | Israel |
| Remarks | The displayed data refers to CC95MT inserts, for other combinations and for Tmax, click on More Info |
Shipping Info
Package Weight
1.213
