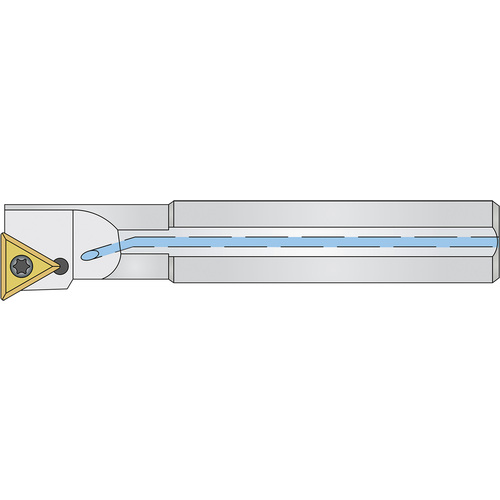

20-1033 1/2 Shank Dia × 5 OAL Coolant-Thru Blind Boring STFCR - Uncoated
Int. Turning Tool ; 4.9″ OAL ; 1/2″ Shank Dia. ; 5″ LF ; 0.633″ Min Bore Dia. ; Steel
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Shank Type | Square |
| Functional Length (LF) | 5″ | Frontal Edge Angle | 90 Degrees |
| Overall Length (OAL) | 4.9″ | Tool Type | Blind Boring|STFCR |
| Functional Width (WF) | 0.605″ | Body Material | Steel |
| Master Insert Identification (MIID) | 50-1300 | Style | A08K STFCR 2 |
| Minimum Bore Diameter (DMIN) | 0.633″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Axial Groove Outside Diameter Minimum (DAXN) | 0.0375″ |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Country of Origin | India |
Shipping Info
Package Weight
0.292
